插床主要由齿轮机构、导杆机构和凸轮机构等组成，为了缩短工程时间，提高生产率，要求刀具有急回运动。

![640](https://www.cax.do/uploads/default/original/2X/f/fe8914829e59908b8b3b363141d95da374f1b96e.gif)

插床机构

铰链机构主要特点：动作迅速、增力比大、易于改变力的作用方向、自锁性能差。

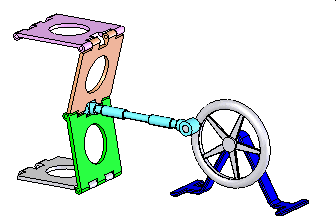

![640 (2)](https://www.cax.do/uploads/default/original/2X/f/fa0783a24c4590185c0e16efb487451f857a71f1.gif)

铰链机构

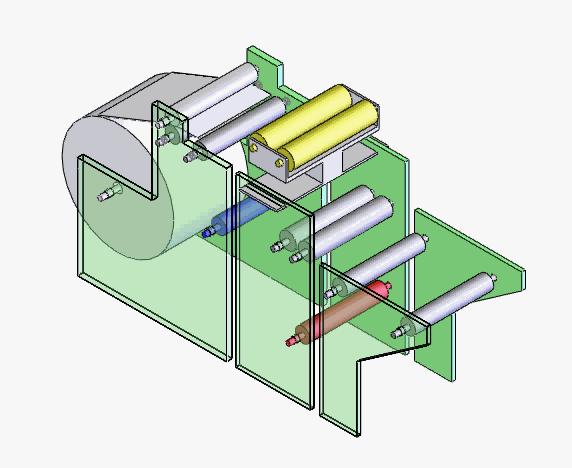

![640 (3)](https://www.cax.do/uploads/default/original/2X/4/40d4a1517c8998de68528d6be0363269ea8514b1.gif)

印刷机构

![640 (4)](https://www.cax.do/uploads/default/original/2X/a/a753838ac17550de4d525cb077d1bfabc48d9d61.gif)

翻斗

![640 (5)](https://www.cax.do/uploads/default/original/2X/8/867e88dc541f84f028c220dacc1704b19d14f1d9.gif)

挤压机构

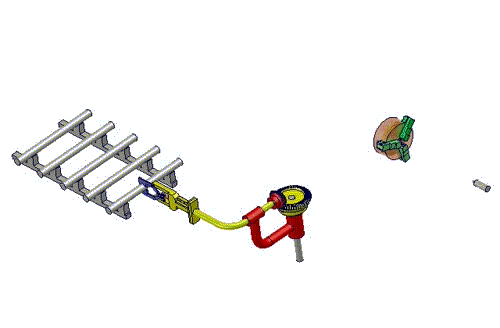

![640 (6)](https://www.cax.do/uploads/default/original/2X/b/b1bf51e5b8a15515cb9da2fffec8453eddb3504b.gif)

机械臂上下料机构

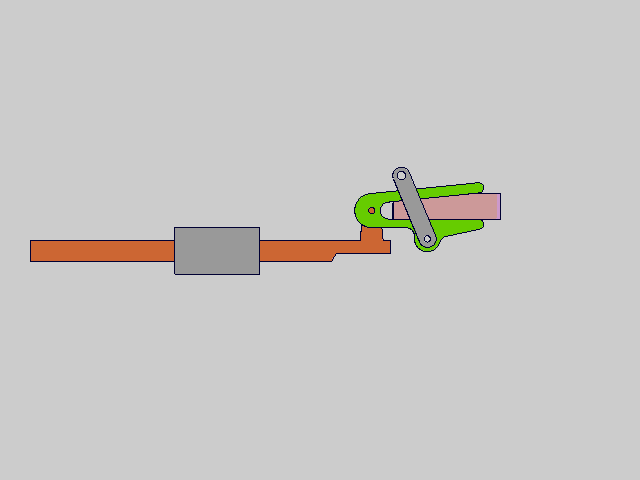

![640 (7)](https://www.cax.do/uploads/default/original/2X/e/e142e4b1cfbfd509cc76a11474ad22b29055fb32.gif)

翻转机构

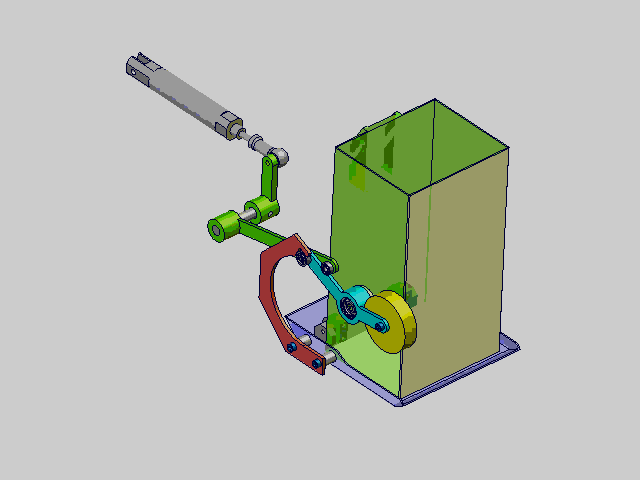

![640 (8)](https://www.cax.do/uploads/default/original/2X/6/6f48fc6ce1e9bc57f822747813b4144aa491ae1f.gif)

开盖落料机构

![640 (9)](https://www.cax.do/uploads/default/original/2X/e/e3b20c89fe6717b81a4a994d836059baf596d850.gif)

手动夹爪机构

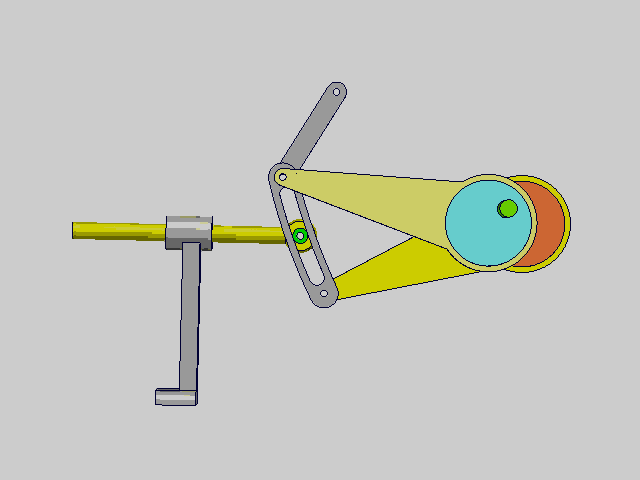

![640 (10)](https://www.cax.do/uploads/default/original/2X/f/f2e6f32bbbe4b1659ecd7b03ce1a293db897e613.gif)

双偏心驱动导杆机构

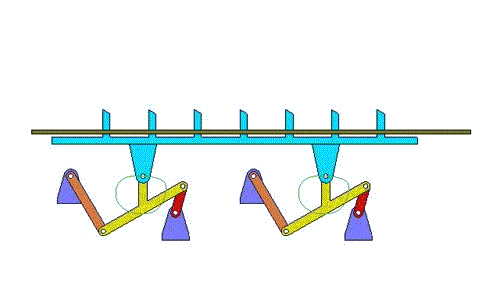

![640 (11)](https://www.cax.do/uploads/default/original/2X/3/32dd31bfd3e109bd014efb4fe2e3e194693deda7.gif)

曲柄摇杆往复传动机构

![640 (12)](https://www.cax.do/uploads/default/original/2X/1/1b74d94a59ed21b9756c0721c739467eaf409ce1.gif)

挑膜机构

![640 (13)](https://www.cax.do/uploads/default/original/2X/4/4bbc7b16356499246f88e356c1ccd8551bf5d1b7.gif)

凸轮与转动导杆组合机构

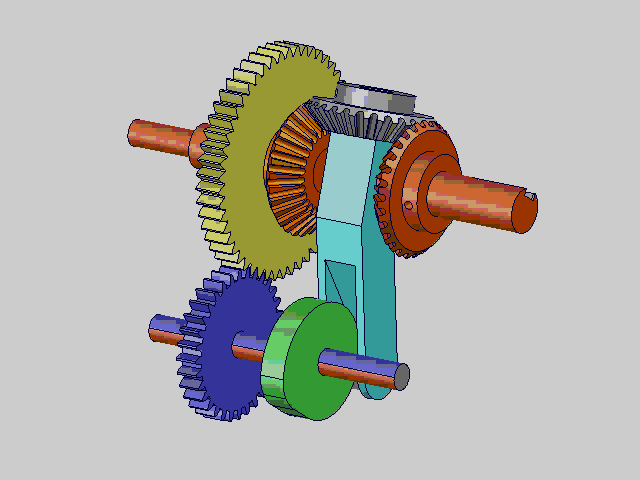

![640 (14)](https://www.cax.do/uploads/default/original/2X/f/f02b8a8511edbac2a3a86be60e9e7e777dea0639.gif)

用凸轮调节圆锥齿轮的输出轴转速机构
